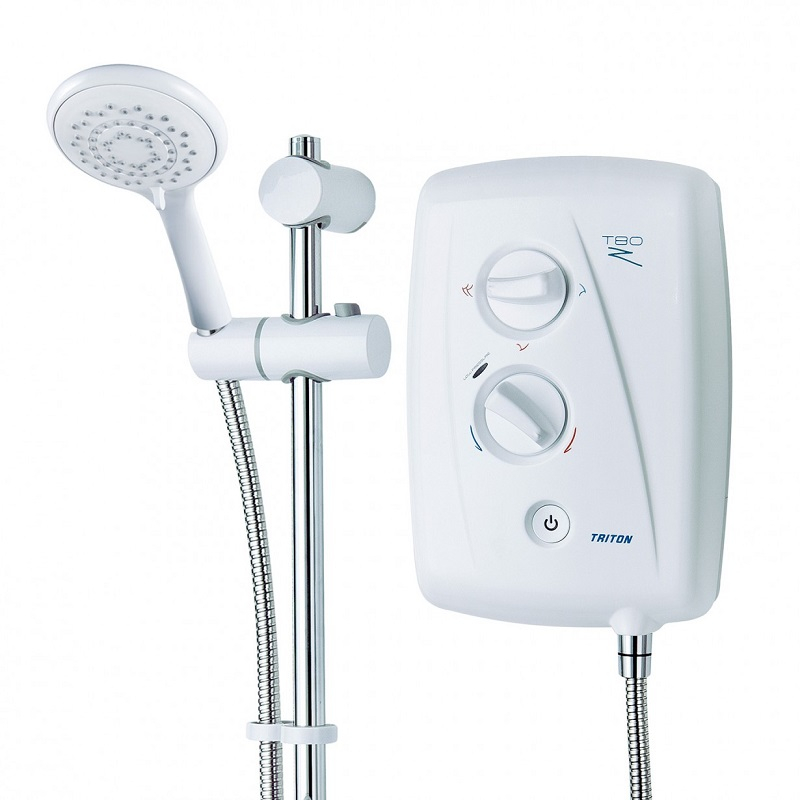

The Triton T80Z Fast fit electric shower is the perfect item for replacing your old, worn showers. It is designed to accept pipe and cable work from any direction with the swing fit wiring terminal. This means that existing cable can be used and can reach the connection. This is also the same design for the water inlet.

The front of the unit indicates the power and also the thermostat which is rotary, along with a low pressure indicator. The shower rail brackets are also adjustable to suit. Complies with BEAB and CE.

Electric Shower
Fast Fit
Swing Fit Terminal for both cables and water inlet
Power Indicator
Rotary Thermostat
Low Pressure Indicator
Adjustable Shower Rail Brackets
Complies with BEAB and CE
Height: 334mm
Width: 255mm
Depth: 104mm
Length: 1.25m

Technical

Product Code	SP8008ZFF
Cable Entry	Left Hand Side - Top, Bottom, Back : Right Hand Side - Bottom, Back
Colour	White
Compliance	BEAB, CE
Height	334mm
Width	255mm
Depth	104mm
Element Type	Minerally insulated corrosion resistant metal sheathing
Energy Rating	A
Guarantee	2 Years
IP Rating	IPX4
Kit Contents	Shower, Riser Rail and Showerhead
Length	1.25m
Material	ABS
Maximum Pressure	10
Minimum Pressure	1
Neon	Yes
Power Rating	8.5kW
Product Range	Electric Showers
Safety Cut Out	Abnormal Safety Cut-Out
Shower Head	5 Settings
Supplied With	Hose Retainer and Soap Dish
Thermostatic	No
Voltage Rating	230V
Water Connection	Cold Mains
Water Entry	Left Hand Side - Top, Bottom, Back : Right Hand Side - Top, Bottom, Back
