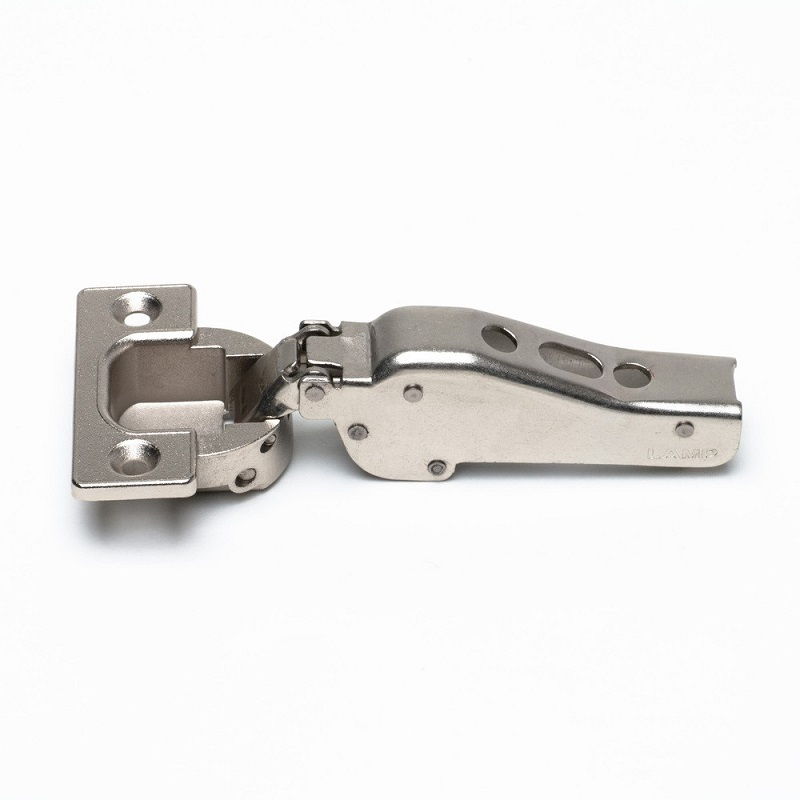

Sugatsune Heavy Duty Concealed Self Closing Hinge - Nickel (5/8" Overlay)
Quick Code: # 7727
£13.20 £11.00
SKU
J95-C24/16T-NI
In stock
Warranty :
1 Year
Delivery :
1-2 Working Days
- Clip on for easy Installation
- Heavy Duty Concealed Hinge
Sugatsune Heavy Duty Concealed Soft Closing Hinge - 5/8" Overlay - Nickel

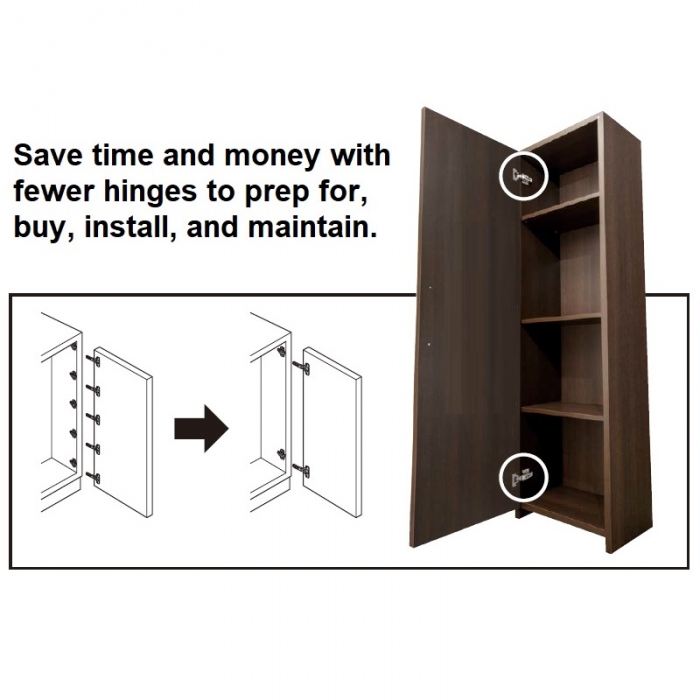

The Sugatsune heavy duty concealed hinge is designed to eliminate the need for the use of 5 or more standard hinges in cabinets and other furniture.
This will then reduce the cost and also the installation time, providing a much better look.
They easily clip on for easy installation and once installed have a 3 way adjustability. They are ideal for wide and heavy items including large cabinets, display cases or enclosures.
Two hinges can hold up to 55lbs (25kg) with 3 hinges being able to hold a weight of 88lbs (40kg).
They can be used on both wood or glass panels and come in a choice of either nickel or black nickel.
- Clip on for easy Installation
- Heavy Duty Concealed Hinge
- Reduces Installation time and Cost
- Ideal for Wide or Heavy Items
- 3 Way Adjustability
- Finish: Nickel
- Self Closing
-
Certified ISO 14001 see downloads

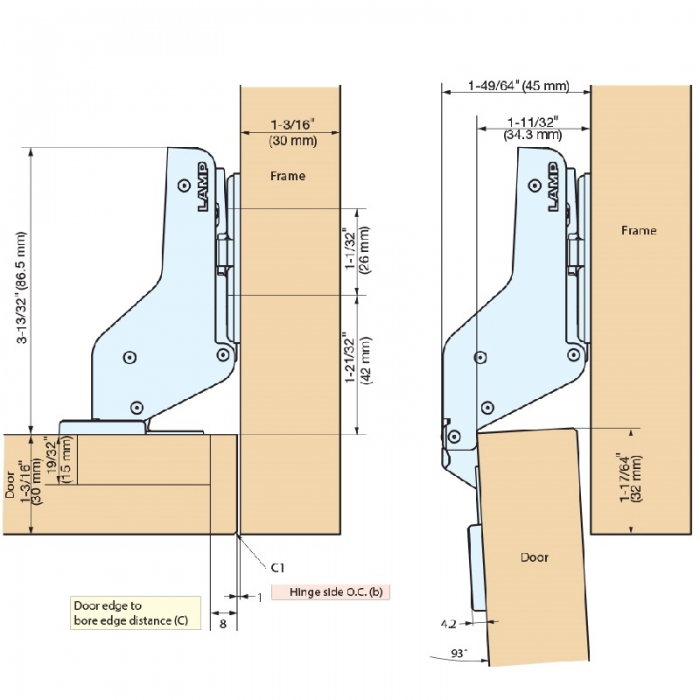

| Product Code | J95-C24/16T-NI |
| Type | No |
| Weight (g) | 143 |
| Clip On | Yes |
| Cup Bore Diameter (mm) | 40 |
| Load Capacity (Kg/3 Hinges) | 88 |
| Load Capacity (Kg/2 Hinges) | 25 |
| Max Door Thickness (mm) | 34 |
| Max Opening Angle (Degrees) | 95 |
| Min. Door Thickness (mm) | 18 |
| Overlay (mm) | 16 |
| SKU | J95-C24/16T-NI |
|---|---|
| GTIN | 4510932168496 |
| Weight | 0.200000 |
| Warranty | 1 Year |
| Quick Code | 7727 |
| Manufacturer | Prestige |
| Delivery | 1-2 Working Days |
