Sugatsune 3 Way Adjustable Concealed Hinge - Silver
Quick Code: # 7755
£27.60 £23.00
SKU
HES3D-70DC
In stock
Warranty :
10 Years
Delivery :
1-2 Working Days
- Can be Applied with Minimum Door Thickness of 19mm
- Choice of 3 Colours
- Small Bore Depth
- Easy to Cut out the Door and Frame
Sugatsune 3 Way Adjustable Concealed Hinge - Silver
The Small HES Series of 3 way adjustable hinges can be applied with a minimum door thickness of 19mm.
They have a small bore depth which allows easy cut out of the door frame.
The 3 way adjustment function allows horizontal, vertical and depth adjustments after the hinge has been installed.
The hinge can also be split in to the door side and the frame side.

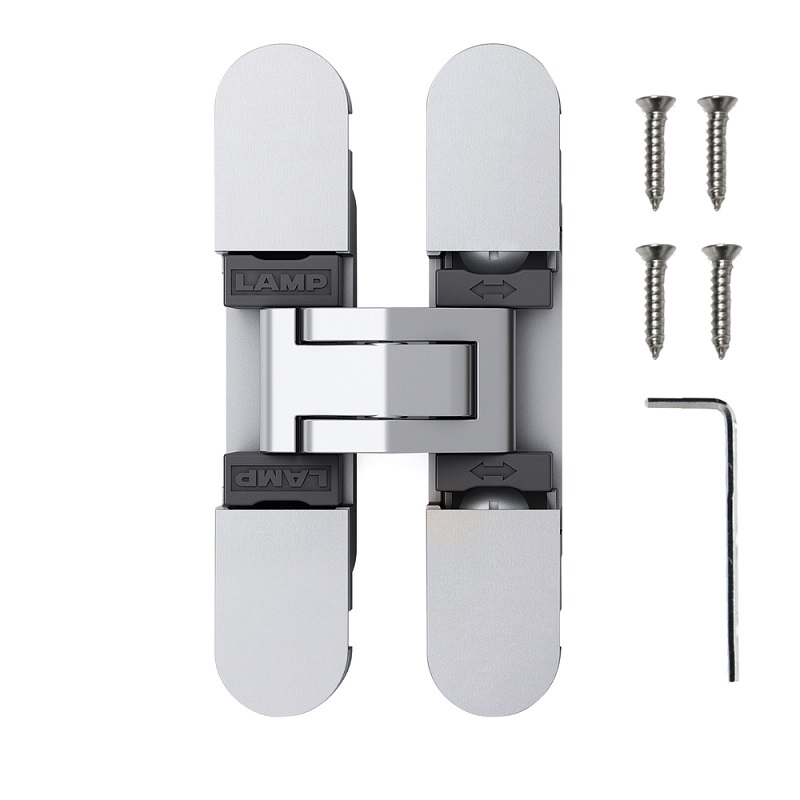

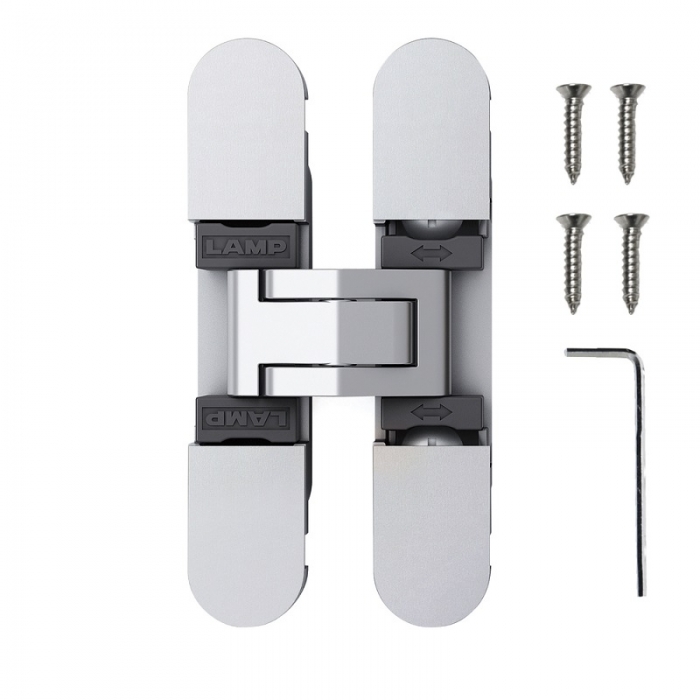

Included with the hinges are the countersunk head tapping screws 4 x 20 (4 pcs per hinge) and also a Hex key.

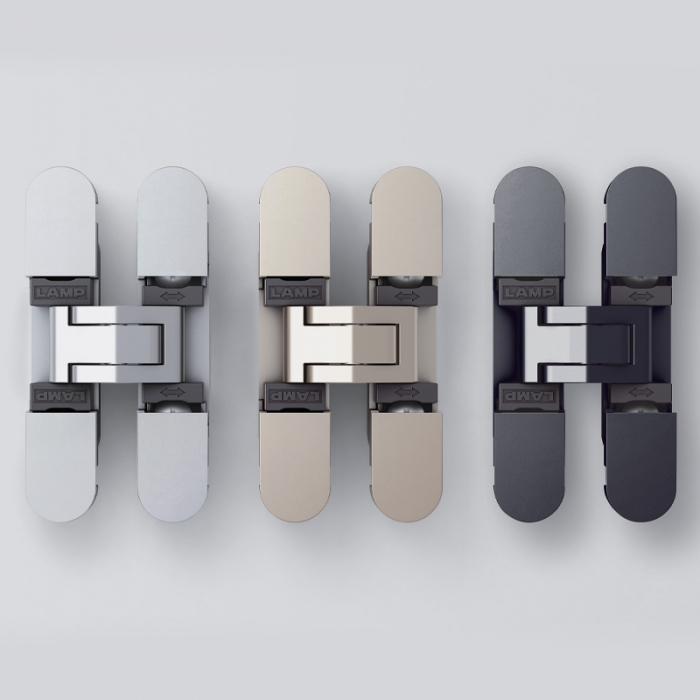

They are also available in Champagne (HES3D-70DN) and Black (HES3D-70BL).
- Can be Applied with Minimum Door Thickness of 19mm
- Choice of 3 Colours
- Small Bore Depth
- Easy to Cut out the Door and Frame
- Use Below Opening Angle of 180°
- Hing Can be Split in to the Door Side and Frame Side
-

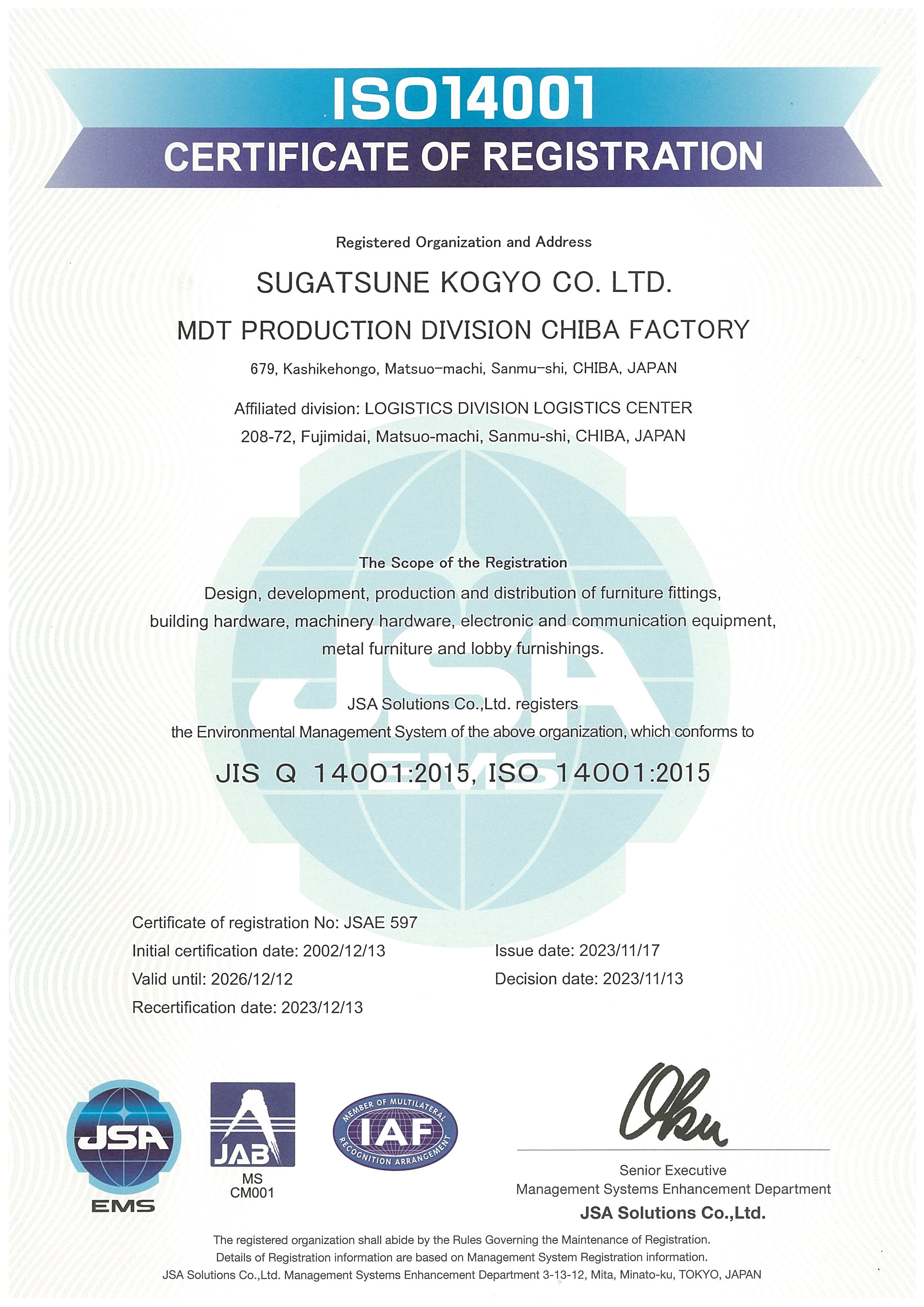

Certified ISO 14001 see downloads
| Product Code | HES3D-70DC |
| Colour | Silver |
| Screws | 4 PCS |
| Max. Door Width (mm) | 600 |
| Max. Door Height (mm) | 1200 |
| Door Thickness Minimum (mm) | 19 |
| Door Weight (kg)2 pcs | 9 |
| Door Weight (kg)3 pcs | 12 |
| Opening Angle | 180° |
| Weight (g) | 95 |
| Material (Body) | Zinc Alloy |
| SKU | HES3D-70DC |
|---|---|
| GTIN | 4510932176637 |
| Weight | 0.200000 |
| Warranty | 10 Years |
| Quick Code | 7755 |
| Manufacturer | Prestige |
| Delivery | 1-2 Working Days |
