Sugatsune 3 Way Adjustable Concealed Hinge - Black
- Can be Applied with Minimum Door Thickness of 19mm
- Choice of 3 Colours
- Small Bore Depth
- Easy to Cut out the Door and Frame
Sugatsune 3 Way Adjustable Concealed Hinge - Black
The Small HES Series of 3 way adjustable hinges can be applied with a minimum door thickness of 19mm.
They have a small bore depth which allows easy cut out of the door frame.
The 3 way adjustment function allows horizontal, vertical and depth adjustments after the hinge has been installed.
The hinge can also be split in to the door side and the frame side.

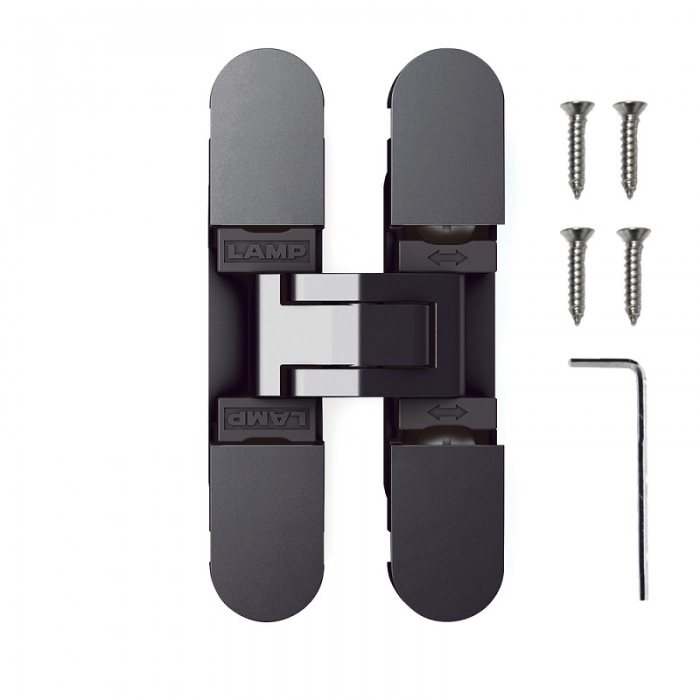

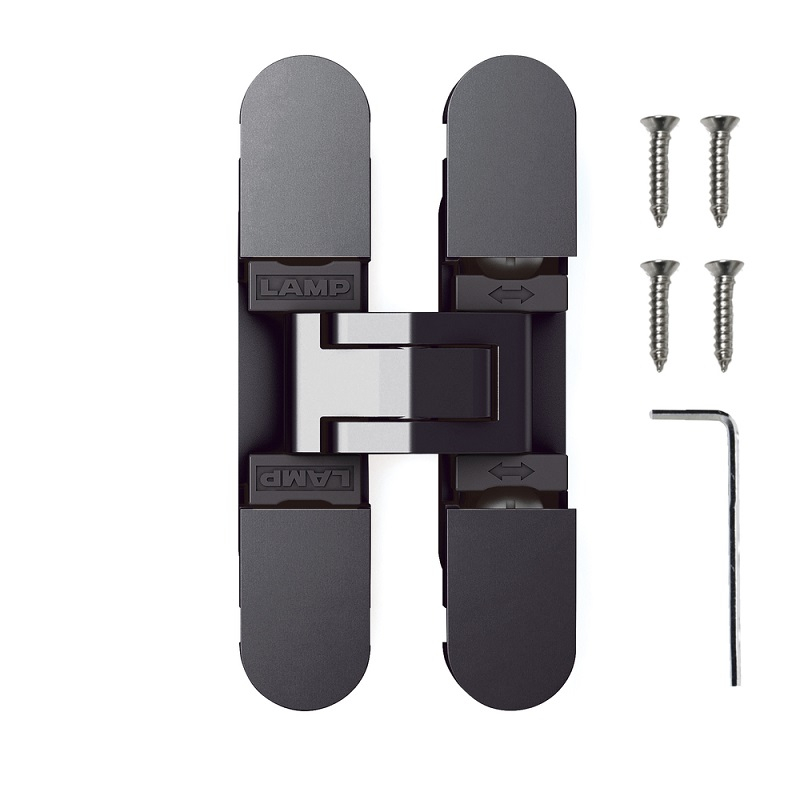

Included with the hinges are the countersunk head tapping screws 4 x 20 (4 pcs per hinge) and also a Hex key.

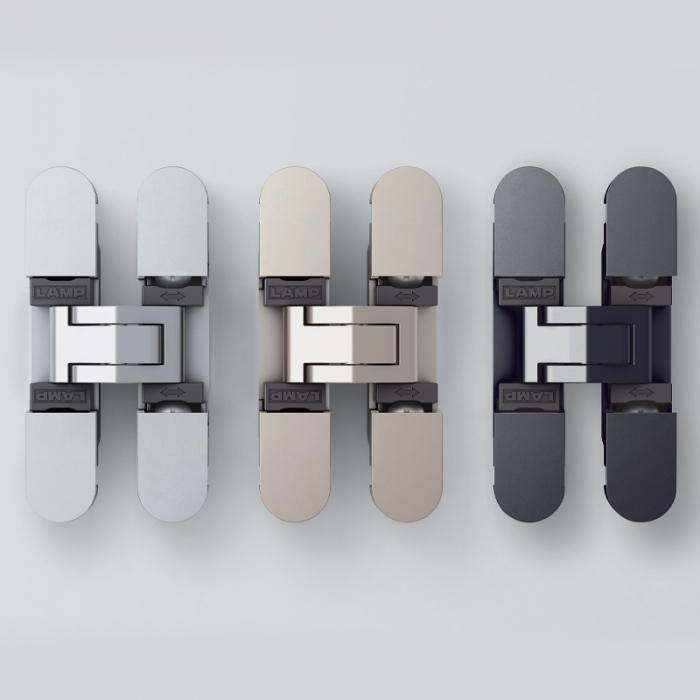

They are also available in Champagne (HES3D-70DN) and Silver (HES3D-70DC).
- Can be Applied with Minimum Door Thickness of 19mm
- Choice of 3 Colours
- Small Bore Depth
- Easy to Cut out the Door and Frame
- Use Below Opening Angle of 180°
- Hinge Can be Split in to the Door Side and Frame Side
| Product Code | HES3D-70BL |
| Colour | Black |
| Screws | 4 PCS |
| Max. Door Width (mm) | 600 |
| Max. Door Height (mm) | 1200 |
| Door Thickness Minimum (mm) | 19 |
| Door Weight (kg)2 pcs | 9 |
| Door Weight (kg)3 pcs | 12 |
| Opening Angle | 180° |
| Weight (g) | 95 |
| Material (Body) | Zinc Alloy |
What is the maximum door height ?
The maximum door height for this hinge is 1200mm
What is the minimum door thickness ?
The minimum door thickness is 19mm
What is the maximum door width ?
The maximum door width is 600mm
| SKU | HES3D-70BL |
|---|---|
| GTIN | 4510932176651 |
| Weight | 0.200000 |
| Warranty | 10 Years |
| Quick Code | 7754 |
| Manufacturer | Prestige |
| Delivery | 1-2 Working Days |
