Prestige Sugatsune Stainless Steel Flush Slam Latch

Prestige Sugatsune Flush Slam Latch

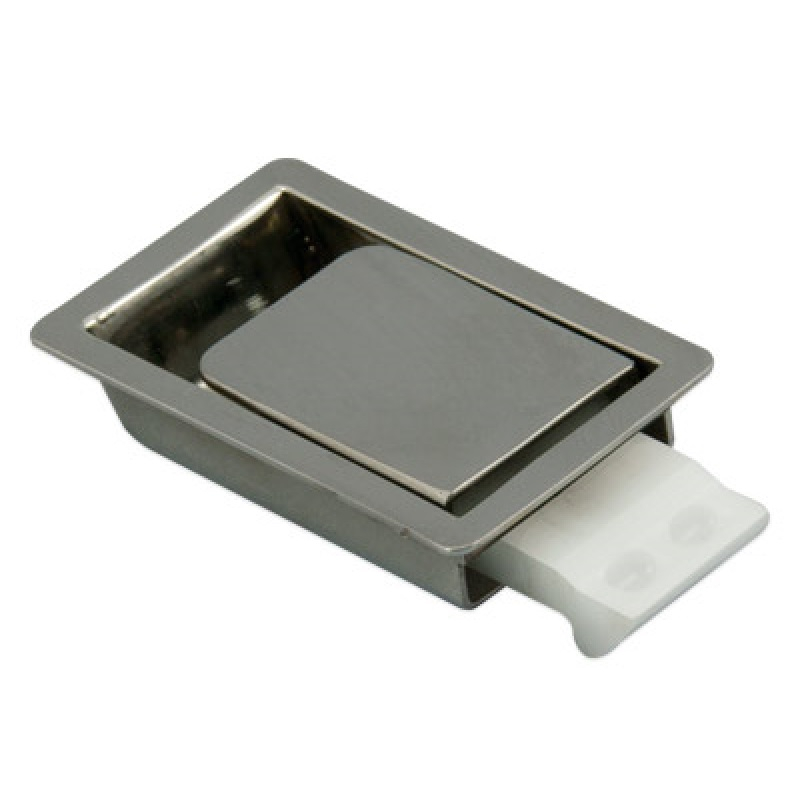

The Prestige LC-48 flush slam latch is made from a high quality polished stainless steel with  a UL-90V0 rated flame retardant material.

This can be installed both on the left and on the right. The door will automatically latch when it is closed.

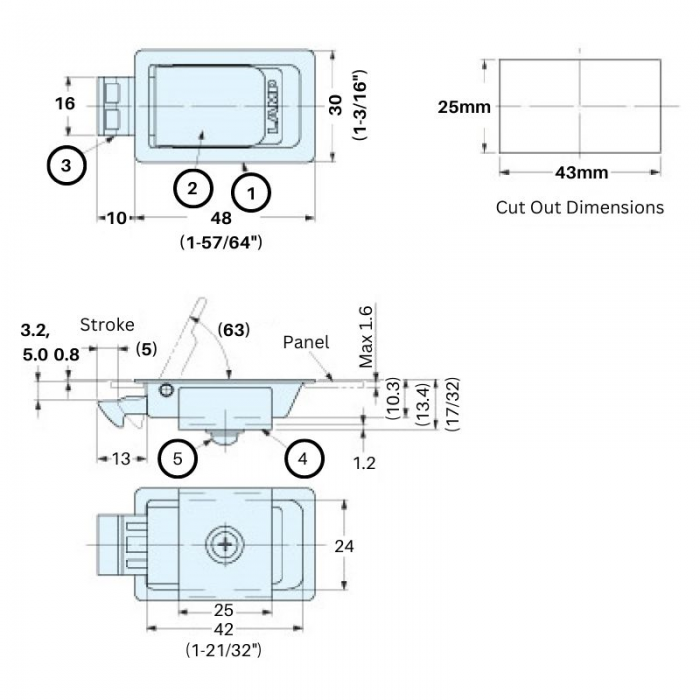

With easy installation, just insert the latch body in to the cut out section (please see the drawing) and just simply screw on the back plate. The latching margin is 5mm and is suitable for panels measuring 1 - 1.6mm. Also included is the pan head screw.

• High quality stainless steel
• UL-90V0 rated flame retardant material
• Installation both on the left and right
• Pull paddle handle to open
• Easy Installation

• Certified ISO 14001 see downloads
