Prestige Sugatsune 3 - Way Adjustable Concealed Hinge - Light Grey
- Fully Concealed Hinge
- Recessed Mount for Door Side
- Surface Mount for Frame Side
- Simple and Easy to Install
3 - Way Adjustable Concealed Hinge - Light Grey
The HES2S range of adjustable concealed hinges are ideal as the door frame does not need to be mortised thus reducing the installation time.

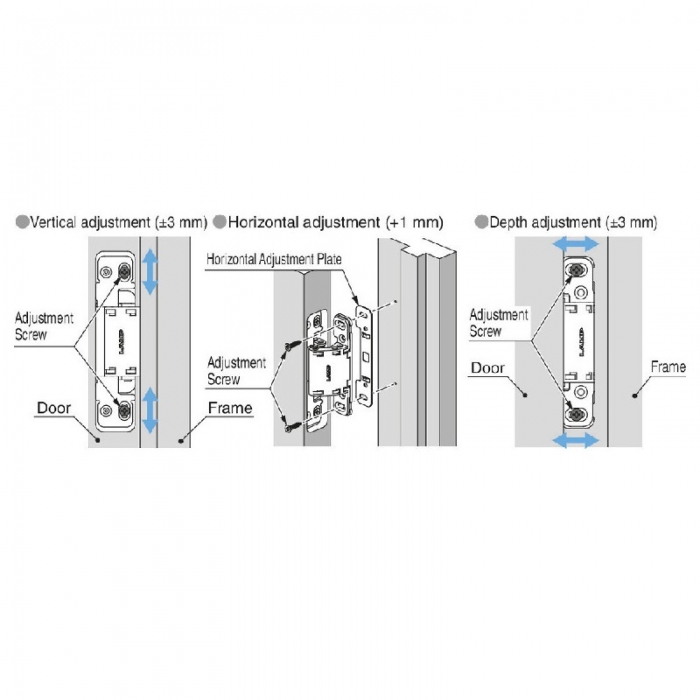

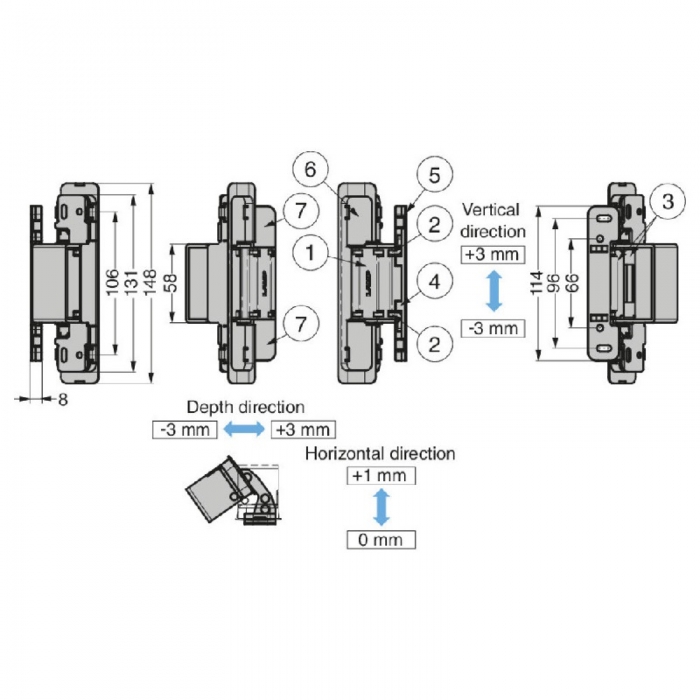

The 3 way adjustment function allows vertical, horizontal and depth adjustments after the hinge has been installed.
With a durable compact body with 300,000 cycle tests enables for a higher load capacity. Two HES2S hinges will easily support doors up to 50kg, with three hinges up to 75kg.
The hinge looks more professional and can be installed away from site for easier installation due to the 1mm protrusion - the easier to transport means a minimal damage risk.

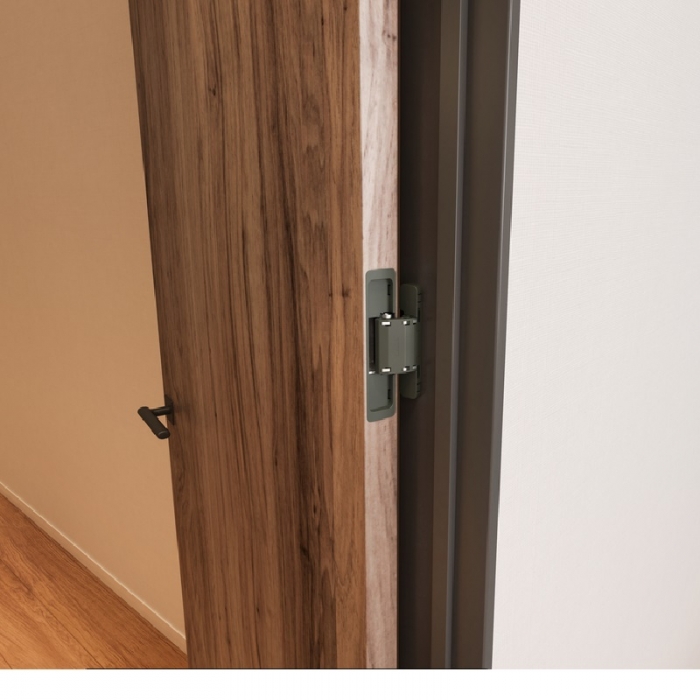

Invisible when closed, the HES2S has a unique design and mechanism which enables the hinges arms to fold in to a socket inside the door allowing the hinge to be hidden.
- Fully Concealed Hinge
- 2 x Hinges suitable for doors up to 50kg
- 3 x Hinges suitable for doors up to 75kg
- Recessed Mount for Door Side
- Surface Mount for Frame Side
- Simple and Easy to Install
- Durable Compact Body, 300,000 cycle tests
- Specifications (mm): H2700 x W900 x Thickness 38

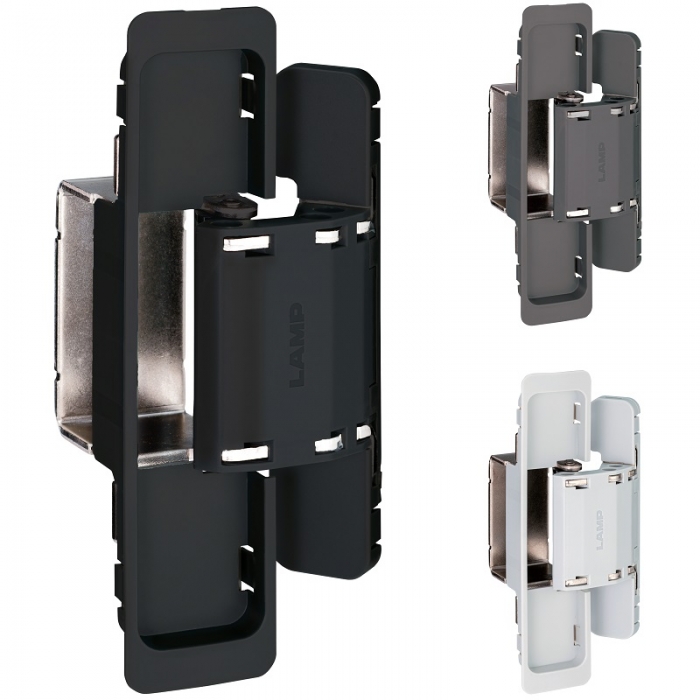

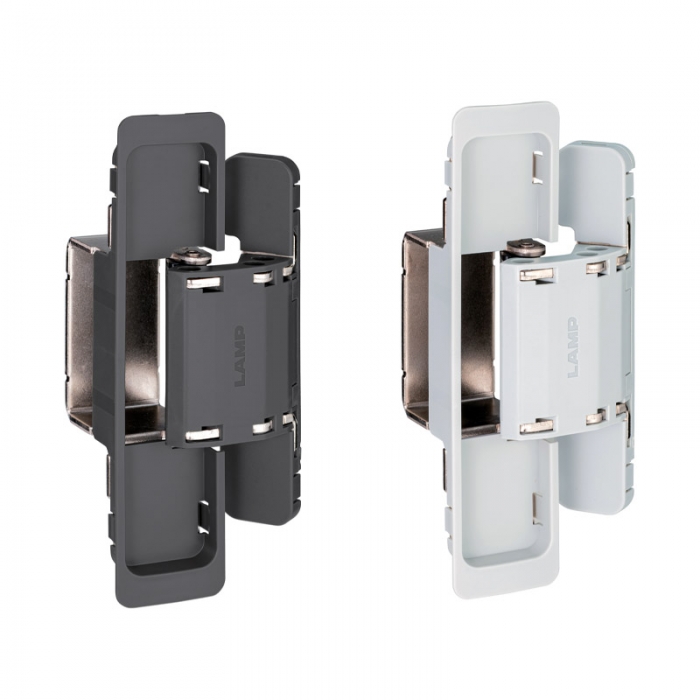

- Choice of 3 Finishes: Light Grey, Dark Grey and Black
-
Certified ISO 14001 see downloads
| Product Code | HES2S-140-A125-LGR |
| Type | Concealed |
| Maximum Door Width (mm) | 900 |
| Maximum Door Height (mm) | 2700 |
| Load Capacity (Kg/2 Hinges) | 50 |
| Max Opening Angle (Degrees) | 125 |
| Min. Door Thickness (mm) | 38 |
| Fixings Included | Yes |
| GTIN/EAN | 4510932222211 |
| SKU | HES2S-140-A125-LGR |
|---|---|
| GTIN | 4510932222211 |
| Weight | 0.300000 |
| Warranty | 5 Years |
| Quick Code | 7838 |
| Manufacturer | Prestige |
| Delivery | 1-2 Working Days |
