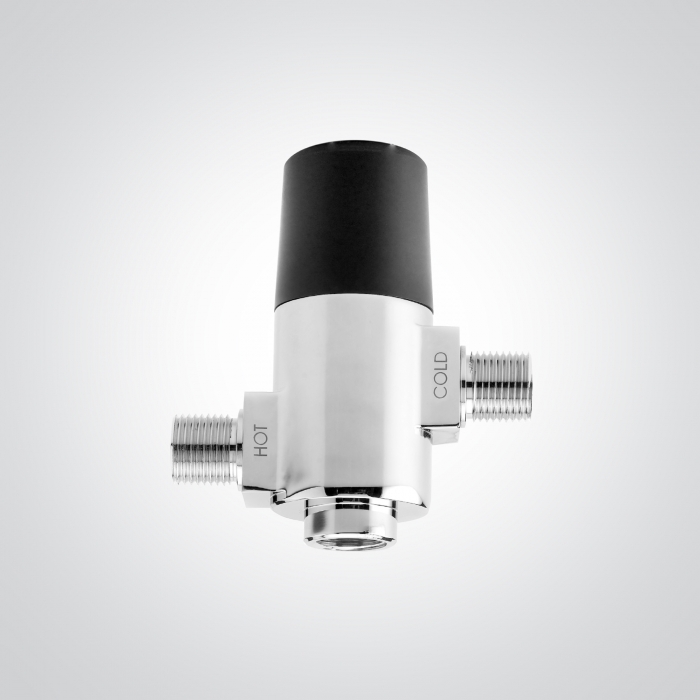

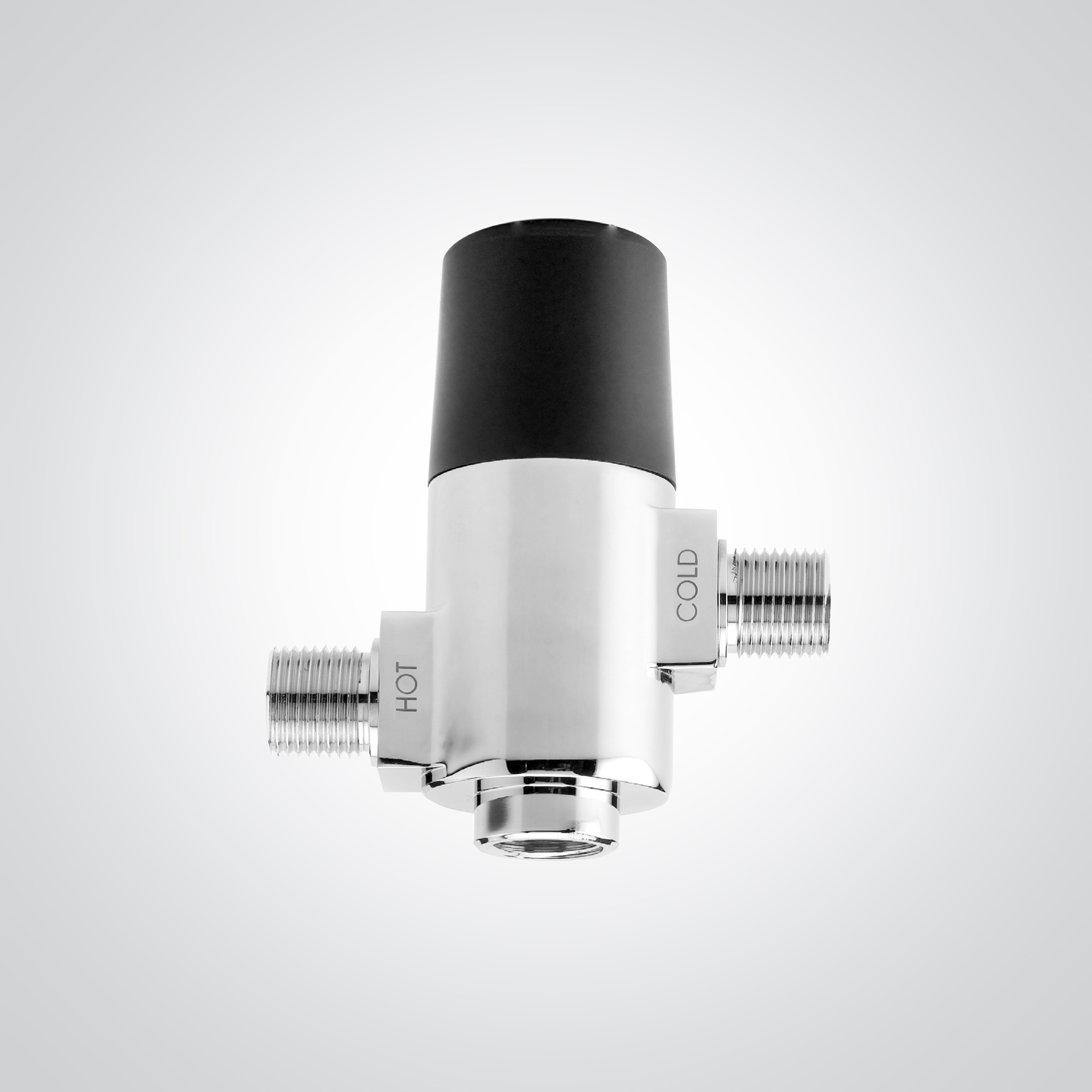

INTEGRATED THERMOSTATIC MIXING VALVE

INTEGRATED THERMOSTATIC MIXING VALVE

Thermostatic mixing valve allowing easy adjustment of hot and cold water.

The hot and cold water supplies can be connected directly to the solenoid valve housing or to the flexible pipe.

The mixer valve can be manually adjusted to a given temperature and this thermostatic mixing valves allows you to limit the water temperature at the point of delivery.

Flow rate 12 litres per minute (LPM) at 3 bar water pressure, therefore at 3 bar you can connect 2 taps with a 6 LPM flow rate or 3 taps with a 4 LPM flow rate (3.89 LPM/1.0 GPM is our standard on most taps to a single Thermostatic Mixing Valve.

• Includes built in filters and back check valves
• Manually set the water temperature at any given time
• Prevents scalding by stopping the water flow if only hot water is supplied
• Pre-mix hot and cold water with easy-to-use adjustment
• Water temperature: Maximum 70º
• Operating pressure: 0.5-8.0 bar (15.0 – 116.0 PSI)
• Water pressure 0.5 – 6.0 bar (7.0 – 88.0 PSI)
• Prevents scalding
• WRAS Approved product
