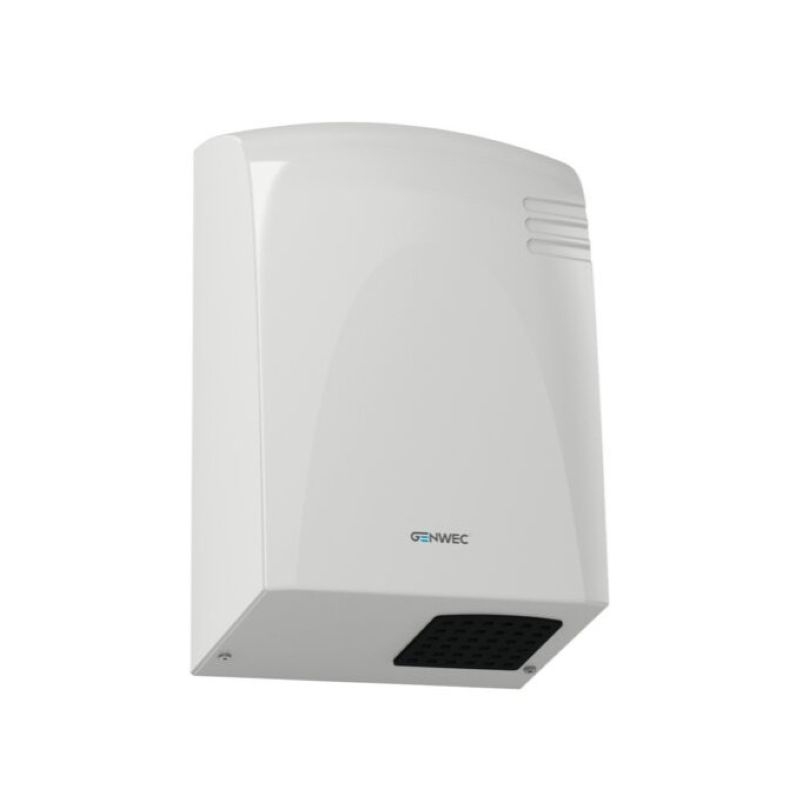

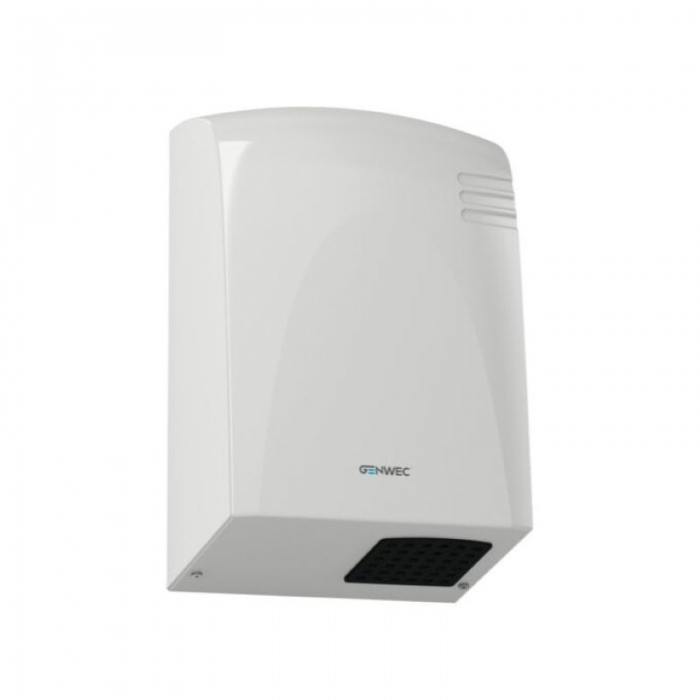

This high-performance hot air hand dryer utilises an advanced electronic infrared sensor for a touch-free, hygienic drying experience. Constructed with a durable white ABS plastic casing, it is impact-resistant and ideal for high-traffic areas. Its powerful motor ensures rapid hand drying while maintaining low noise levels.

Featuring a one-piece ABS plastic casing and a polycarbonate grille, the dryer is mounted on a robust ABS plastic base supporting the flame-retardant thermoplastic volute-nozzle. Secure wall mounting is achieved with four 8 mm drill bit holes.

Activation is automatic via an infrared sensor, triggering the universal brushless motor at 2800 RPM, producing a strong airflow of 4000 litres per minute (240 m³/h) at 65 km/h.

With a 1900W power rating at 230V and a 7.5A current draw, it operates efficiently at just 60 dB from a 2-metre distance. Designed for longevity, it boasts an IPX1 rating for splash resistance.

Protection Class: IPX1
Resistor Overheat Thermostat
Air Flow: 4000 l/min (240 m³/h)
Air Speed: 65km/h
Noise Level At 2 m: 60dB
Dimensions: H355mm x W255mm
Projection: 153mm
Voltage/Frequency: 220‐240V 50/60 Hz
Maximum Intensity: 7.5A
Total Power Rating: 1900W
Resistor Power Rating: 1740W
Motor Power Rating: 60W
Motor Type: Universal, Brushless
Rotor Speed: 2800 r.p.m.
Electrical Insulation: Class II
GTIN/EAN: 8433989000501

Technical

Product Code	GW01140100
Electrical Insulation	Class 2
Protection Class	IPX1
Air Flow	4000 l/min (240 m³/h)
Air Speed	65km
Noise Level At 2m	60dB
Output Air Temperature At An Ambient T. of 21 ºC	65ºC
Outer Casing Type	White ABS Thermoplastic
Dimensions (mm)	H355mm x W255mm
Projection (mm)	153mm
Voltage/Frequency	220‐240V 50/60 Hz
Maximum Intensity	7.5A
Total Power Rating	1740W
Motor Power Rating	60W
Motor Type	Universal Brushless
Rotor Speed	2800 r.p.m
GTIN/EAN	8433989000501

FAQs

How is the hand dryer installed?

The dryer is fixed to the wall using four mounting holes, each requiring an 8 mm drill bit. Ensure that the unit is securely attached for safe operation.

How does the sensor activation work?

The hand dryer operates using an electronic infrared sensor. It starts automatically when hands are placed within the sensor’s range and stops when they are removed.
