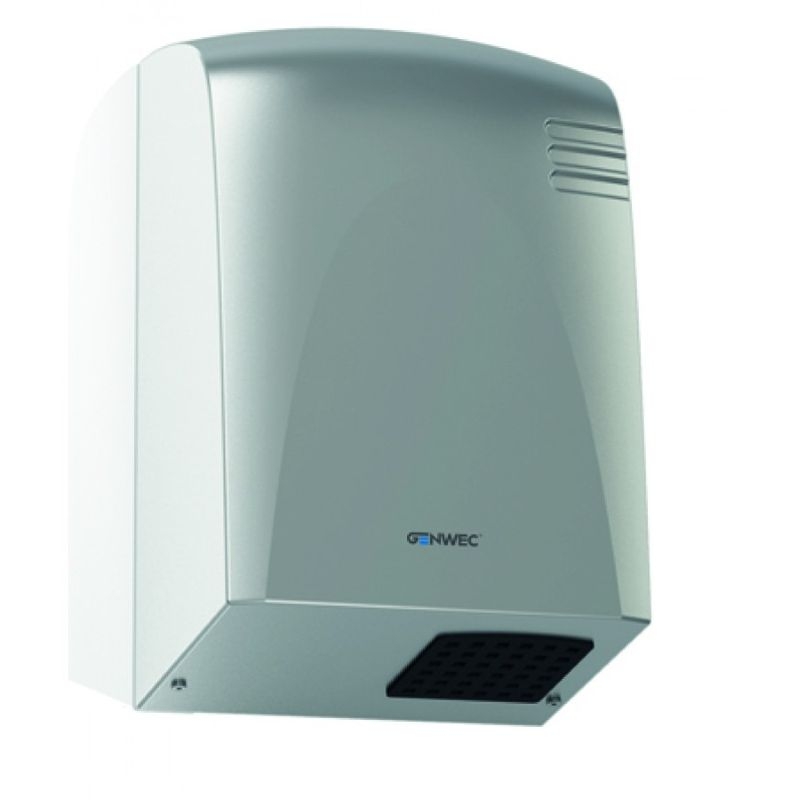

This advanced hot air hand dryer is designed for efficiency and durability, featuring a high-performance infrared sensor for automatic activation. Constructed with a reinforced one-piece ABS plastic casing and a flame-retardant thermoplastic volute-nozzle, it is built to withstand high-traffic environments.

Its universal brushless motor operates at 2800 RPM, generating a high-speed airflow of 4000 litres per minute (240 m³/h) at 65 km/h. The unit runs at 1900W, drawing a maximum of 7.5A at 230V, ensuring both power and efficiency.

Wall-mounted using four 8 mm drill bit holes, this dryer provides a secure installation. It also maintains a low noise level of just 60 dB at 2 metres and boasts an IPX1 splash-resistance rating, making it a reliable and robust hand drying solution.

Voltage/Frequency: 220‐240V 50/60 Hz
Maximum intensity: 7.5A
Total Power Rating: 1900W
Resistor Power Rating: 1740W
Motor Power Rating: 60W
Air Speed: 65km/h
Noise Level At 2 m: 60dB
Dimensions: H355 x W255mm
Projection: 153mm
Motor Type: Universal, Brushless
Rotor Speed: 2800 r.p.m.
Electrical Insulation: Class I
Protection Class: IPX1
Resistor Overheat Thermostat
Air Flow: 4000 l/min (240 m3/h)
GTIN/EAN: 8433989000525

Technical

Product Code	GW01140401
Outer Casing Type	White ABS Thermoplastic
Dimensions (mm)	H355mm x W255mm
Projection (mm)	153mm
Voltage/Frequency	220‐240V 50/60 Hz
Maximum Intensity	7.5A
Total Power Rating	1740W
Motor Power Rating	60W
Motor Type	Universal Brushless
Rotor Speed	2800 r.p.m
Electrical Insulation	Class I
Protection Class	IPX1
Air Flow	4000 l/min (240 m3/h)
Air Speed	65km
Noise Level At 2m	60dB
Output Air Temperature At An Ambient T. of 21 ºC	65ºC
GTIN/EAN	8433989000525

FAQs

What is the airflow and speed of the dryer?

The dryer delivers an airflow of 4000 litres per minute (240 m³/h) at a speed of 65 km/h.

Is the hand dryer water-resistant?

Yes, the dryer has an IPX1 protection rating, meaning it is resistant to splashing water.

What is the material of the casing?

The casing is made from durable ABS plastic, with a polycarbonate grille and a flame-retardant thermoplastic volute-nozzle.

What is the power consumption?

The hand dryer has a total power rating of 1900W at 230V, with a maximum current draw of 7.5A.

How loud is the hand dryer?

The noise level is 60 dB when measured at a distance of 2 metres.

How does the sensor activation work?

The hand dryer operates using an electronic infrared sensor. It starts automatically when hands are placed within the sensor’s range and stops when they are removed.
