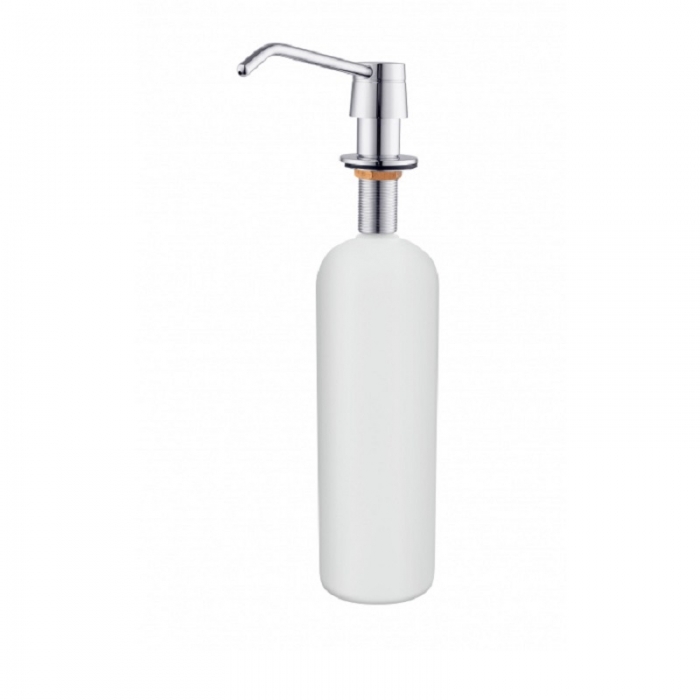

Vanity Top Soap Dispenser Polished Stainless Steel 1000ml
- Suitable for offices sizes up to 80 people for daily use
- Capacity: 1000ml, (1.25ml per dispense)
- Required hole Ø in counter top 25-35mm
- Maximum surface thickness 40mm
Vanity Top Soap Dispenser Polished Stainless Steel 1000ml
Sturdy countertop dispenser, Stylish, counter mounted for prestige washrooms, unique anti-drip system with a maximum bottle capacity of 1000ml, providing 800 hand washes per soap fill.
This soap dispenser is finished in highly polished AISI 304 stainless steel. Installed directly onto counter tops including marble, granite, glass, stone and all wood types, required hole Ø in counter top 25-35 mm.
The soap dispenser sits low on the counter top with a maximum height of 60mm, with a long spout length of 125mm.
- Suitable for offices sizes up to 80 people for daily use
- Not suitable for multifeed soap system, bottle only
- Capacity: 1000 ml, (1.25 ml per dispense)
- Required hole Ø in counter top 25-35 mm
- Maximum surface thickness 40 mm
- Bottle height: 240 mm, Dia: 80 mm
- Spout 125 mm; Solid Steel Stem 45 mm
- Bottle in white ABS
- Durability and resistance against corrosion, designed for public areas
| Product Code | GW04090100 |
| Description | Vanity Top Soap Dispenser |
| Dimensions | H60mm x W30mm |
| Projection | 135mm |
| Finish | Polished Stainless Steel |
| Capacity | 1000ml |
| GTIN/EAN Number | 8433989010692 |
| HS/Commodity Code | 7324100000 |
What is the size of the bottle?
The bottle is 240mm in height.
Is this soap dispenser suitable for a mult-ifeed system?
Yes this dispenser has a very good pump strength and the hose can be extended to 1.0-.2m. Ideal for being fed from a 5ltr container from below.
How do you prime this dispenser with soap when using a longer tube length?
Priming the dispenser when using a longer tube is easily done by pumping water through the dispenser first. Once the tube is fully primed with water, place the tube into the soap tank and pump the soap through to the top. (Can be fully primed within 2 minutes)
Can the soap dispenser be filled from above countertop?
There is no access to the bottle from the top, soap must be.
How long is the stem and bottle below the countertop?
The steel stem is 45mm in length, the bottle screws directly onto the stem and is 240mm in length.
How long is the spout?
The spout is 125mm in length with a maximum height above countertop of 60mm
Can the spout be turned 360 degrees?
Yes the spout can be turned 360, this helps prevent vandalism, and enables easy access-cleaning to the rear of the dispenser, fixed spouts are more prone to breaking.
What is the diameter of the base plate that covers the hole cut out?
The polished steel base plate is 50mm in diameter and fits flush to the countertop
How is the dispenser fixed to the countertop?
The dispenser is fixed to the countertop from the underside. The dispenser is supplied with brass locking nut and steel washer.
| SKU | GW04090100 |
|---|---|
| GTIN | 8433989010692 |
| Weight | 0.500000 |
| Warranty | 2 Years |
| Quick Code | 4113 |
| Delivery | Next Working Day |
