The Genwec Electronic Tap is a touchless, wall-mounted faucet designed for installation behind mirrors, providing a sleek, hygienic solution for contemporary washrooms. Its robust body is constructed from chrome-plated brass, ensuring long-lasting durability. An integrated infrared (IR) sensor automatically activates water flow when hands are detected within a 50–100 mm range, delivering a hands-free and efficient experience.

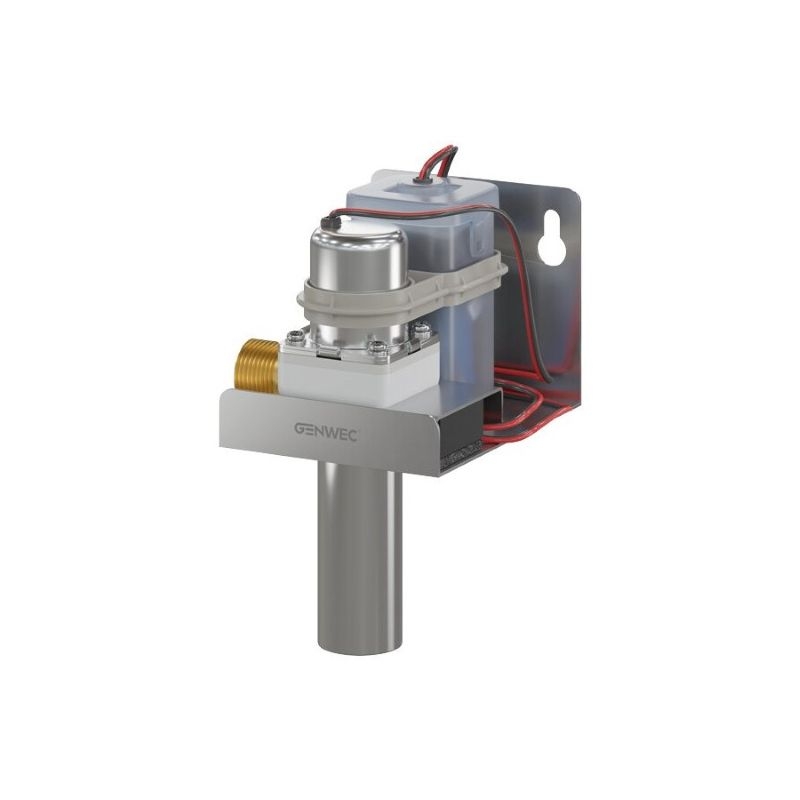

Equipped with an internal solenoid valve, the tap supplies water instantly when activated and shuts off as soon as hands are removed, promoting water conservation. The system includes an ‘L’-shaped metal bracket for secure wall mounting, along with essential components such as the metal support, IR sensor, solenoid valve, and battery box.

The tap operates on 6 VDC power, using either four AA batteries or an optional power adapter (100-240 VAC / 6 VDC, 50/60 Hz). It features a low standby power consumption of less than 2 mW and a working consumption of under 4 W. Suitable for cold water applications, it connects via a G1/2” water pipe and supports water pressures from 0.05 to 0.8 MPa.

For installation, ensure proper alignment of the water outlet and sensor housing to maintain unobstructed sensor performance. Mark and drill mounting points for the metal plate, insert nylon plugs, and secure with the provided screws. Reference the installation diagram for precise measurements—sensor outlet diameter of 26 mm and bracket placements at 65 mm, 76 mm, and 97 mm.

The battery box should be installed as shown, allowing easy access for maintenance. To keep the tap operating effectively, regularly clean the IR sensor lens with a soft cloth and avoid any obstruction. Do not use abrasive cleaners, benzene, or acids, as these may damage the sensor or finish.

Finished in Brushed Stainless Steel
Main Body Material: Chrome Plated Brass
Battery or Mains Operated
Batteries Not Included - 4 x AA Batteries Required
Suitable for Cold & Premixed Water 43C
Power: Standby < 2 mW, Use < 4 W
Sensing Distance: 50 – 100 mm
Water-Pipe Diameter : G1/2”
Suitable Water Pressure: 0.05 – 0.8 MPa
Voltage: 220 - 240V
Frequency: 50/60Hz
GTIN/EAN: 8433989015383

Technical

Product Code	GW13200602
Dimensions (mm)	H128.5mm x W65mm x P97mm
Main Body Material	Chrome Plated Brass
Power Supply	Battery Operated or Adaptor
Batteries Included	No, 4 x AA Batteries Required
Voltage	220 - 240V
Frequency	50/60Hz - 6 VDC
Power	Standby < 2 mW, Use < 4 W
Sensing Distance	50 - 100mm
Water Pipe Diameter	G1/2”
Suitable Water Pressure	0.05 – 0.8 MPa
Water Suitability	Cold and Premixed Hot Water
GTIN/EAN	8433989015383

FAQs

What is the Genwec Behind Mirror Electronic Tap?

The Genwec Behind Mirror Electronic Tap is a sensor-activated tap designed to be mounted behind a fixed mirror, offering a sleek, touch-free handwashing solution ideal for modern and hygienic washrooms.

What materials is the tap made of?

The electronic tap is constructed with a high-quality stainless steel spout and durable components, ensuring longevity and resistance to corrosion. The brushed or polished finish complements modern washroom aesthetics.

Is the tap vandal-resistant?

Yes, the design includes vandal-resistant features such as a concealed installation behind the mirror and tamper-proof components.

How does the electronic tap operate?

The tap operates via an infrared sensor that detects the user’s hands and activates the water flow automatically. Once hands are removed, the water stops flowing, promoting water conservation and hygiene.

What powers the electronic tap?

It can be powered either by a DC 6V power supply (adapter) or battery options (4 x AA batteries not included) depending on the model. The standard AC power adapter typically features an input of 100-240V and an output of DC 6V, 1000mA.
