Genwec 1000ml Behind Fixed Mirror Automatic Soap Dispenser
- Dimensions (mm): H325mm x W250mm x P100mm
- Finish: Brushed Stainless Steel
- Output: DC 6V Adaptor 1000mA

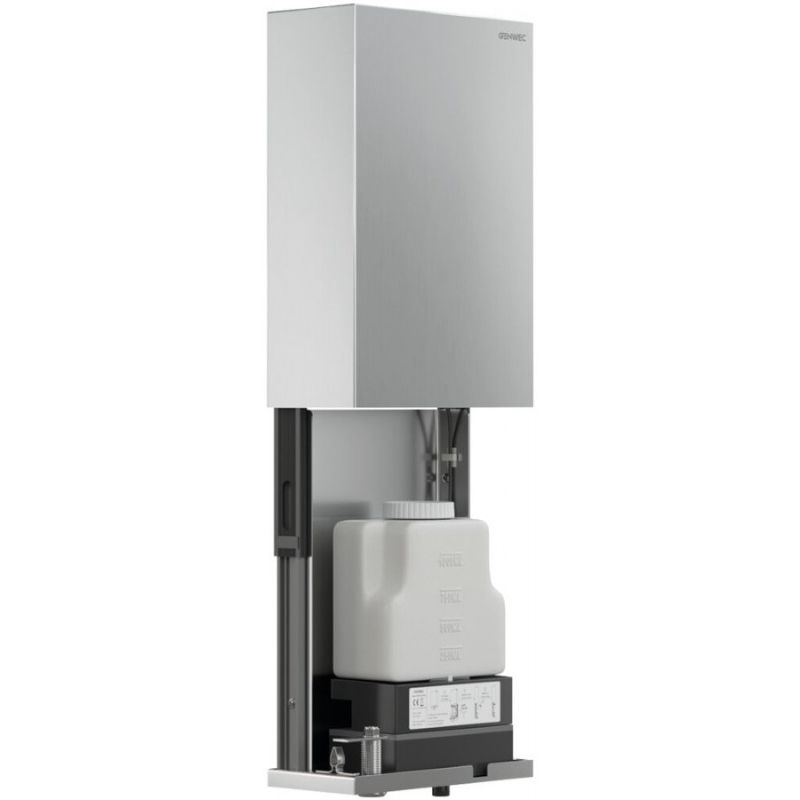

Genwec Behind Fixed Mirror Automatic Soap Dispenser - 1000ml
The Genwec Behind Fixed Mirror Automatic Soap Dispenser is a sleek, touch-free solution designed for modern washrooms. Featuring a durable stainless steel structure with a brushed finish and a 1000ml plastic bottle, it mounts discreetly behind a fixed mirror for a clean, minimalistic appearance.
Sensor-activated from its base, the dispenser automatically releases 1–2ml of soap per cycle, depending on the soap’s viscosity. Refilling is quick and easy by pulling down the control unit from the main structure. Powered by a DC 6V power supply connected to an internal driver with a 2-metre outer cable, it ensures consistent performance. A locking key at the bottom of the unit secures access for maintenance, allowing only authorised personnel to refill or service it.
Suitable for soap solutions with a pH of 5–9, it operates reliably in ambient temperatures ranging from 1ºC to 55ºC. Measuring 320 x 250 x 100mm, it’s ideal for high-traffic commercial settings. For optimal operation, avoid areas with strong magnetic fields or vibrations, and clean the unit with neutral detergent and a soft cloth. Keep the sensor clear of debris, and avoid benzene, thinner, or acid-based cleaners to prevent malfunctions.
- Dimensions (mm): H325mm x W250mm x P100mm
- Finish: Brushed Stainless Steel
- Output: DC 6V Adaptor 1000mA
- Soap Volume Per Use: 1 - 2ml
- Soap PH: PH: 5 - 9
- Cable Length: 2m
- Soap Capacity: 1000ml
- Voltage: 220 - 240V
- Frequency: 50/60 Hz
- Sensing Distance: 140mm - 160mm
- Ambient Temperature: 1 – 55ºC
- GTIN/EAN: 8433989011972
Product Code | GW13200401 |
Dimensions (mm) | H325mm x W250mm x P100mm |
Output | DC 6V Adaptor 1000mA |
Voltage | 220 - 240V |
Frequency | 50/60 Hz |
Installation Type | Behind Mirror |
Sensing Distance | 140mm - 160mm |
Ambient Temperature | 1 – 55ºC |
Finish | Brushed Stainless Steel |
Bottle Volume | 1000ml |
Soap Volume Per Use | 1 - 2ml |
Soap PH | PH: 5 - 9 |
Cable Length | 2m |
GTIN/EAN | 8433989011972 |
What are the installation requirements?
The dispenser is designed to be installed behind a fixed mirror. It includes all the necessary fixings for easy installation. Ensure it’s not installed in areas with strong magnetic fields or excessive vibration.
How is the dispenser operated?
The dispenser is sensor-activated, providing a touch-free, hygienic experience. It automatically dispenses soap when hands are placed under the sensor.
What is the capacity of the Genwec Behind Fixed Mirror Automatic Soap Dispenser?
The dispenser has a capacity of 1000ml, making it ideal for high-traffic washrooms where frequent refilling is not required.
What are the operating conditions for the dispenser?
- Ambient temperature: 1-55ºC
- Maximum humidity: 90% RH
What type of soap can be used with this dispenser?
It is compatible with various viscosities of liquid soap. However, ensure the soap does not contain large particles, as impurities may affect the sensor operation or block the nozzle.
SKU | GW13200401 |
---|---|
GTIN | 8433989011972 |
Weight | 2.000000 |
Warranty | 2 Years |
Quick Code | 8067 |
Manufacturer | genwec |
Delivery | 5-7 Working Days |
