Dyson Airblade Wall Tap Hand Dryer 1.6kW

Dyson Airblade Wall Tap Hand Dryer 1.6kW

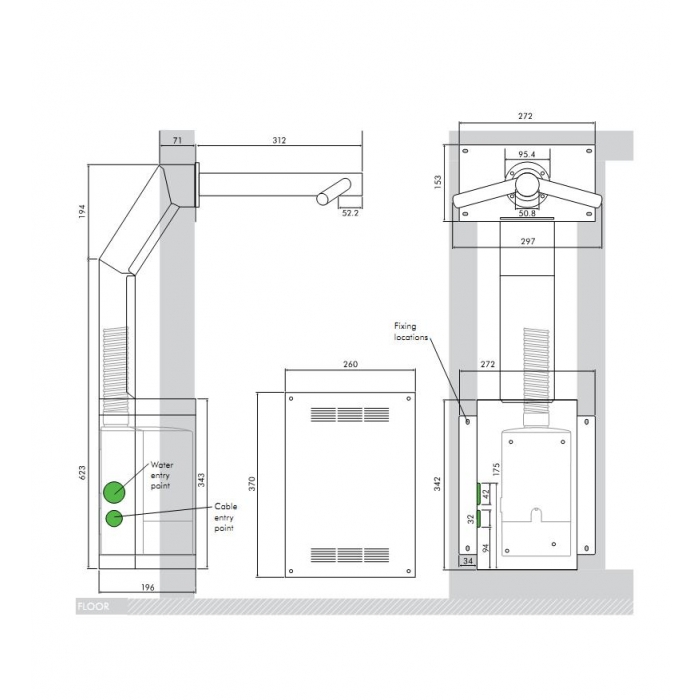

The Dyson AB11 hand wash and dryer is for mounting on cavity washroom walls above a suitable hand wash basin. Incorporates a sensor operated water tap and a highly efficient, automatic, hands-under hand dryer. Please note highly polished sink surfaces should be avoided at all times. Standard porcelain or brushed metal surface sinks are ideal for the AB11 to operate efficiently! This unit is supplied with the V4 Dyson digital hand drying motor 1.6kW that will dry hands completely in 12 seconds. The V4 unit also accepts the hot - cold or mixed water supply, the entry point is situated at the rear of the motor, see technical drawing.

The recommended supply water pressures are from 1 bar up to 8bar. Any hot water supplies must be premixed to a suitable hand washing temperature. The water is activated by infrared sensor and will dispense 4 l/min. Once the hands have been removed from hand washing, simply move them to the sides or wings and the hands will be dried completely within 12 seconds. When multiple taps are installed side-by-side, tap centres should be a minimum of 580mm apart.

•  The Dyson Airblade Tap hand dryer is compatible with most sink types
• Constructed from marine grade stainless steel
• Width of sink – Minimum: 350mm, front to back – Minimum: 300mm
• Depth of sink – Minimum: 100mm
• Water flow rate: 4 l/min - ensure plugs are not installed in basins
• Water temperature control: Thermostatic mixer recommended (not supplied)
• Hand dry time measurement: 12 seconds - no more paper towels
• Rated power: 1600W - 13A - 220-253 V 50 Hz - IP35
• Airspeed at apertures: 430 mph - Bacteria removal 99.9%
• Operating airflow: Up to 30 l/s - Operating temperature range: 0° – 40°C
• Standby power consumption: Less than 0.5W
