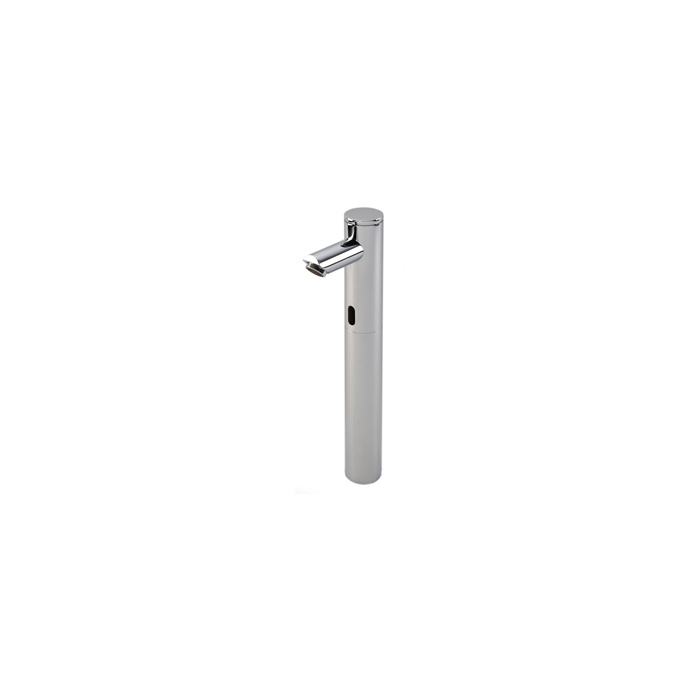

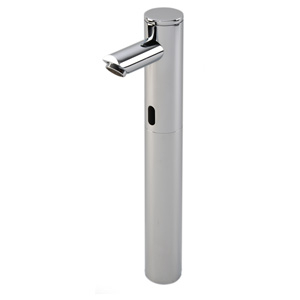

Dolphin Blue Counter Mounted Electronic Infrared Tap

Dolphin Blue Counter Mounted Electronic Infrared Tap

Touch Free Electronic Tap - Tap is activated when the user brings hands within the sensor range Ultimate Hygiene-Prevents cross contamination Water Supply: Single inlet - cold or pre-mixed water supply (see DB 60 mixer valve) Flow rate - 3.8 litre/minute (other flow rates available to special order – please enquire) Flow time once user's hands are removed from the tap - 1 second (adjustable by using remove control DB51) Power Source: Plug-in 9 Volt transformers (supplied) or 9 Volt (6 x AA Batteries) Battery Pack Superior quality chrome plated brass or stainless steel 3/8" BSP Water supply connection Tap settings may be adjusted by using remote control (DB50) Filters, fixing bolts, installation instructions and power source supplied with each tap 2 year manufacturer's warranty State of the art electronic infrared sensor Ideal for counter top basins Operating pressure 0.5 - 8.0 bar (7 - 116 PSI) Maximum water temperature 70ºC Water Supply : Single - cold/premixed Counter: Hole : diameter 34-36mm Min-Max thickness: 2-27mm Mandatory Hygiene Flush is available - can be set to 12,24 or 48 Hour intervals - optional extra & must be specified when ordering Flow rate – 4 litres/minute (other flow rates available to special order – please enquire)

• Touch free - for ultimate hygiene
• Quality chrome plated brass construction
• Brushed satin and mirror polish finishes available
• Flow rate – 4 litres/minute
• Operating pressure 0.5 - 8.0 bar (7 - 116 PSI)
• Maximum water temperature 70ºC Water
