Dan Behind Mirror Hand Dryer
- Brushless induction motor fan
- Heating element in different capacities
- Housing in 2 mm aluminum plate - welded
- Low noise operation: 66 dB(A)
Dan Behind Mirror Hand Dryer
A build-in hand dryer for 230 V ac nominal supply input with touch-less activation. The standard model can be modified and customised to meet individual demands and requirements.

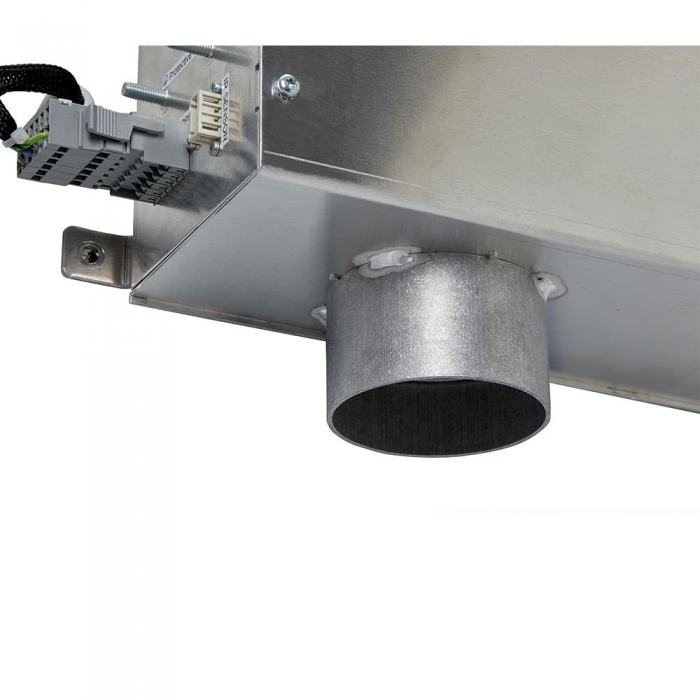

The outlet nozzle is meant for the mounting of a standard flexible aluminium hose. Such compressed flexible hose can be supplied. 72 l/sec measured at the outlet nozzle, a precondition for a high air volume is that the flexible hose is kept as short and as straight as possible to avoid loss of pressure.
Upon activation, the machine will run until hands are removed again. Automatic stop after 3 minutes of continuous use. The wattage for this unit is: 1610W. Please note this product is made to order
- Build-in: Air inlet to be held free. Minimum distance to wall: 10 mm
- 230 V ac nominal supply input, std. 1610 W
- Electronic timer unit to be activated through external IR sensor - adjustable

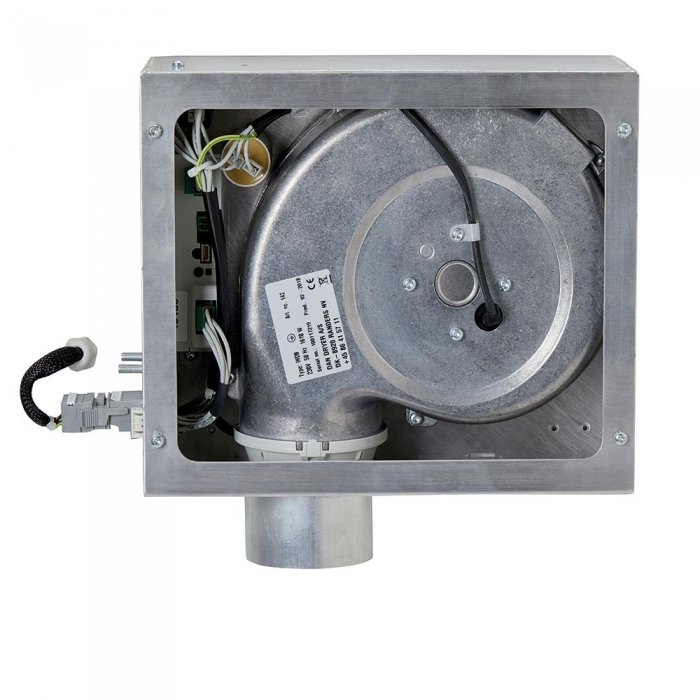

- Brushless induction motor fan
- Heating element in different capacities
- Housing in 2 mm aluminum plate - welded
- Low noise operation: 66 dB(A)
- Life expectancy: 300,000 cycles – or 5 years
- Outlet nozzle (outside) Ø 80
- EN 45545-2:2013+A1:2015: Fire testing of materials and components for trains
- EN 45545-5:2013+A1:2015: Fire protection on railway vehicles for electrical equipment
| Product Code | D142 |
| Noise Level dB | 66 @ 1m |
| Motor Power (W) | 110 |
| Heater Element (W) | 1500 |
| Drying Time (Seconds) | 10 |
| Air Volume | 72 Ltrs Second |
| Water Proof Rating | Class 1 |
| Operating Voltage | 220 - 230 |
| Warranty | 5 Years |
| Finish | Stainless Steel |
| Weight (kg) | 4.8 |
| Height x Width x Depth (mm) | 293 x 297 x 122 |
What are the standards of testing for the D142 hand dryer?
The standards for the Dan 142 as follows: EN 50121-3-2 (EMC) EN 50155 (Electronic Eqpt) EN 61000-6-1:2005 EN 61000-6-3:2006 EN 45545-2:2013+A1:2015 (Fire & Smoke, HL3) EN 45545-5:2013-A1:2015 EN 61373 (Shock & Vibration, Cat. 1 Class B) (Please see downloads for more information)
| SKU | D142 |
|---|---|
| GTIN | 5709818001425 |
| Weight | 4.800000 |
| Warranty | 5 Years |
| Quick Code | 3972 |
| Manufacturer | Dan |
| Delivery | 2-3 Weeks |
