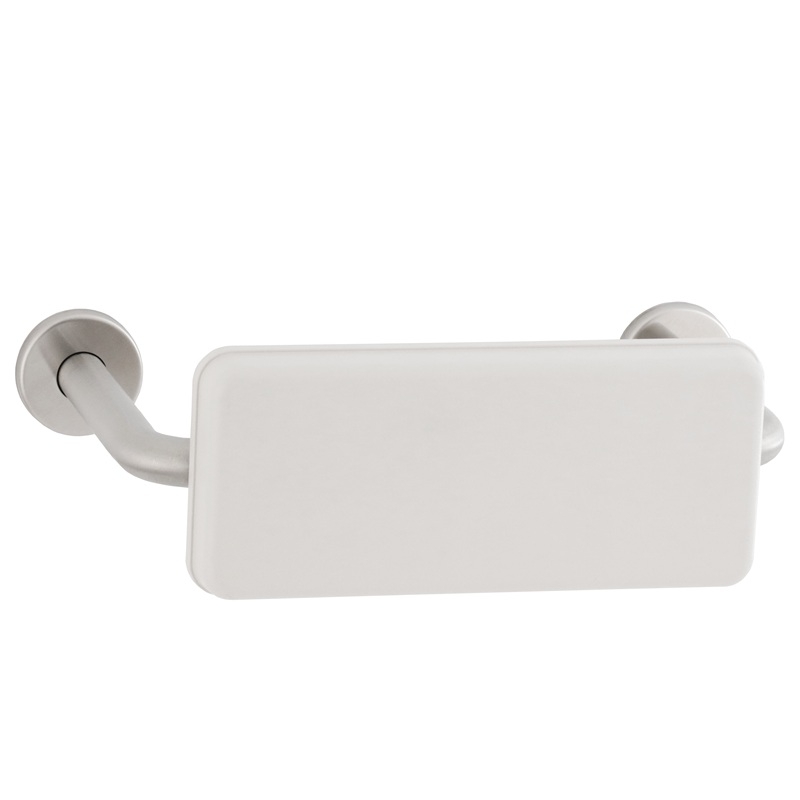

Bobrick Grab Bar Rail with Padded Back Bar Satin Finish with White Polyurethane Foam
- Dimensions: H360mm x W160mm
- Projection: 40mm
- Grab Bar Diameter: 30mm
- Grab Bar Clearance from Wall: 210mm
Bobrick Grab Bar Rail with Padded Backrest
This grab rail is designed to provide enhanced support and comfort in accessible washroom facilities. Constructed from Type-304 stainless steel with a satin finish, it offers exceptional durability and a sleek, modern appearance. With an 18-gauge (1.2mm) wall thickness and a 30mm (1-1/4") outside diameter, it ensures a secure and sturdy grip for users.
For added comfort, the grab bar features a white polyurethane integral foam backrest, enhancing user experience. Concealed mounting flanges and snap flange covers contribute to a clean and seamless installation, elevating the overall aesthetic of any washroom.
Engineered for concealed mounting, the ends pass through the flanges and are heliarc welded to create a single structural unit. This design not only ensures maximum strength and stability but also provides a polished, professional finish, making it an ideal choice for commercial and public restroom applications.
- Dimensions: H360mm x W160mm
- Projection: 40mm
- Grab Bar Diameter: 30mm
- Grab Bar Clearance from Wall: 210mm
- Type-304 stainless steel
- ADA-compliant
- EAN/GTIN:0716954017093
| Product Code | B-5892 |
| Material | Type-304 Stainless Steel With Satin Finish |
| Wall Thickness (mm) | 1.2mm (18-gauge) |
| Outside Diameter (mm) | 30mm (1-1/4") |
| Clearance from Wall (mm) | 210mm (8-1/4") |
| Mounting Flanges (mm) | 3mm (11-gauge) Plate, 50 x 80mm (2" x 3-1/8") |
| Backrest Dimension (mm) | 360mm x 160mm x 40mm (14-1/4" x 6-3/8" x 1-5/8") |
| Backrest Material | White Polyurethane Integral Foam |
| Mounting Hardware | Six Screw Holes Per Flange For Secure Attachment |
| EAN/GTIN | 0716954017093 |
What is the Grab Bar used for?
The Grab Bar is designed to provide support and stability in accessible washroom facilities. It features a grab bar with a padded backrest for additional comfort.
What material is the grab bar made of?
The grab bar is constructed from Type-304 stainless steel with a satin finish, ensuring durability and resistance to corrosion.
What is the purpose of the padded backrest?
The white polyurethane integral foam backrest provides additional comfort for users who require support while seated.
How is the grab bar installed?
The grab bar features concealed mounting flanges with snap flange covers for a seamless appearance. It is securely mounted using screws that pass through six holes per flange.
Is the grab bar ADA-compliant?
Yes, when installed correctly, meets ADA (Americans with Disabilities Act) requirements for accessibility in public restrooms.
Can this grab bar be used in both commercial and residential settings?
Yes, it is ideal for public restrooms, hospitals, care facilities, and accessible washrooms, but it can also be installed in private homes for additional support.
Is the grab bar resistant to rust and moisture?
Yes, the Type-304 stainless steel construction provides excellent resistance to rust and moisture, making it suitable for humid environments such as bathrooms.
How do I clean and maintain the grab bar?
The grab bar and backrest can be cleaned with a mild detergent and warm water. Avoid using abrasive cleaners that may scratch the stainless steel finish.
| SKU | B-5892 |
|---|---|
| GTIN | 0716954017093 |
| Weight | 2.000000 |
| Warranty | 1 year |
| Quick Code | 8048 |
| Manufacturer | Bobrick |
| Delivery | 1-2 Working Days |
